13.3-inch EDP TFT LCD Display Product Introduction
The 13.3-inch EDP TFT LCD display is a device that utilizes high-end display technology and is widely popular in portable devices, commercial displays, and industrial applications for its excellent image quality and versatility. The following is a detailed introduction to a 13.3-inch EDP TFT LCD display with a resolution of 1920 * 1080 pixels, 30 pin interface, and 72% NTSC color gamut coverage and a brightness of 350cd/m ².
Product Features
Brand and Model: SFTO1330SM-7191AN
Panel type: a-Si TFT-LCD
Size: 13.3 inches
Resolution: 1920 (RGB) × 1080 (FHD)
Pixel arrangement: RGB vertical stripes
Aspect ratio: 16:9
Point spacing: 0.051 × 0.153mm
Pixel spacing: 0.153 × 0.153mm (166PPI)
Brightness: 350cd/m ² (typical value)
Contrast ratio: 800:1 (typical value)
Viewing angle: 85/85/85/85 (typical value)
Color gamut coverage: 72% (NTSC)
Response time: 30 (typical value) (Tr+Td) ms
Display mode: VA/IPS, normally black display, transmissive
Backlight type: WLED
Working temperature: -10~60 ° C
Storage temperature: -20~60 ° C
Optical Performance
This 13.3 inch TFT offers high brightness of 350cd/m ² and high contrast ratio of 800:1, ensuring clear images and vivid colors. 72% of the NTSC color gamut coverage ensures the true reproduction of colors, making the display effect closer to natural colors.
Interface Characteristics
Signal category: EDP
Panel voltage: 3.3V (typical value)
Panel current: 279/468mA (typical/maximum)
Interface type: Terminal
Interface pin count: 30 pins
Application Area
This 13.3-inch EDP TFT LCD display is suitable for various application scenarios, including but not limited to:
Portable devices: such as high-end laptops, tablets, etc.
Commercial display: used for advertising machines, information dissemination systems, etc.
Industrial application: As a display interface for industrial control systems.
Summary
This 13.3-inch EDP TFT LCD display provides users with an excellent visual experience with its high resolution, high brightness, high contrast, and wide color gamut coverage. Whether in strong outdoor light or low indoor light environments, clear display effects can be guaranteed. Its versatility and reliability make it an ideal choice for various application scenarios.

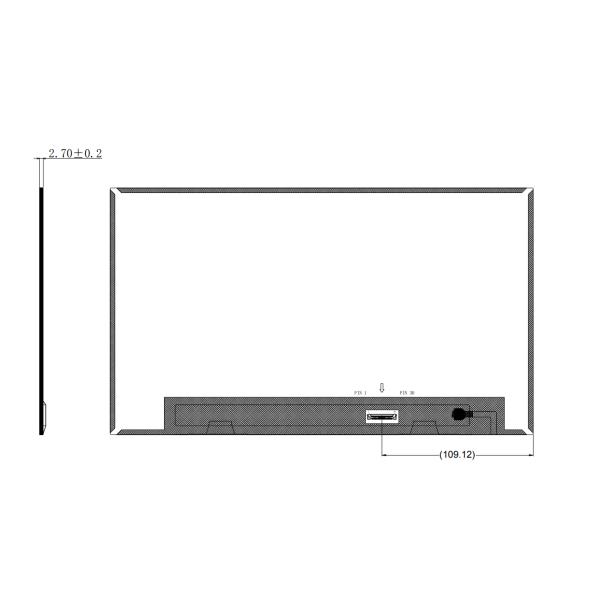

Outline Drawing
Interface Pin Definition
| Pin No. | Symbol | I/O | Function |
| 1 | CABC_EN / NC | - | Reserved for CD |
| 2 | H_GND | P | High Speed round |
| 3 | Lane1_N | I | Complement Signal Link Lane 1 |
| 4 | Lane1_P | I | True Signal Link Lane 1 |
| 5 | H_GND | P | High Speed round |
| 6 | Lane0_N | I | Complement Signal Link Lane 0 |
| 7 | Lane0_P | I | True Signal Link Lane 0 |
| 8 | H_GND | P | High Speed round |
| 9 | AUX_CH_P | I | True Signal Auxiliary Channel |
| 10 | AUX_CH_N | I | Complement Signal Auxiliary Channel |
| 11 | H_GND | P | High Speed round |
| 12 | LCD_VDD | P | LCD logic and driver power(3.3V) |
| 13 | LCD_VDD | P | LCD logic and driver power(3.3V) |
| 14 | NC | I | Reserved for LCD manufacturer’s use |
| 15 | LCD_GND | P | LCD logic and driver ground |
| 16 | LCD_GND | P | LCD logic and driver ground |
| 17 | HPD | O | HPD signal pin |
| 18 | LED-1 | P | Backlight ground |
| 19 | LED-2 | P | Backlight ground |
| 20 | LED-3 | P | Backlight ground |
| 21 | LED-4 | P | Backlight ground |
| 22 | BL ENABLE | I | Backlight on/off |
| 23 | BL PWM DIM | I | System PWM |
| 24 | SCL/NC | - | Reserved for LCD manufacturer’s use |
| 25 | SDA/NC | - | Reserved for LCD manufacturer’s use |
| 26 | BL PWR | P | Backlight power |
| 27 | BL PWR | P | Backlight power |
| 28 | BL PWR | P | Backlight power |
| 29 | BL PWR | P | Backlight power |
| 30 | NC | - | Reserved for LCD manufacturer’s use |
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Remarks |
| Back-light Power Supply Voltage | HVDDOUT | - | - | V | Ta = 25 ℃ Note 1&2 Remarks |
| Back-light LED Current | IHVDD | - | - | mA |
| Back-light LED Reverse Voltage | VR | - | - | V |
| Operating Temperature | TOP | -10 | 60 | ℃ | Ta = 25 ℃ Note 1&2 |
| Storage Temperature | TST | -20 | 60 | ℃ |
| Operating Ambient Humidity | Hop | - | 90 | %RH |
| Storage Humidity | Hst | - | 90 | %RH |
| Heat Release Requirement | Trls | 15 | ℃ | |
TFT LCD Electronical Specifications
| Parameter | Symbol | Ratings | Unit |
| MIN | TYP | MAX |
| Power Supply Input Voltage | V DD | 3.0 | 3.3 | 3.6 | V |
| Power Supply Current | IDD | - | - | - | mA |
| LED Driver Power Supply Voltage | HVDD | 2.7 | | 24 | V |
| LED Driver Power Supply Current | IHVDD | | 20 | - | mA |
| LED Power Consumption | PLED | | 2.7 | | W |
| Positive-going Input Threshold Voltage | VIT+ | | | +100 | mV |
| Negative-going Input Threshold Voltage | VIT- | -100 | | | mV |
| Differential input common mode voltage | Vcom | | TBD | | V |
Backlight Electronical Specifications
| Parameter | Symbol | Min. | Typ. | Max. | Unit |
| Supply voltage | VBL | 5 | 12.0 | 37 | V |
| Power supply Current for Back light | ILED | 6 | - | 25 | mA |
| Power supply for Back light | PLED | 0.18 | - | 5.55 | W |
| Modulated light signal voltage | VPWM H | 1.2 | - | 5.0 | V |
| VPWM L | 0 | - | 0.6 | V |
| Brightness Control Duty Ratio | Duty | 1 | - | 100 | % |
| Brightness Control frequency | fPWM | 100 | - | 1,600 | KHz |
| LED-BL ON/OFF High voltage | VCNTH | 1.2 | | 5.0 | V |
| LED-BL ON/OFF low voltage | VCNTL | 0 | - | 0.6 | V |
| LED lifetime | - | 30,000 | 40,000 | - | h |
Product Image
