4" Inch TFT DSI MIPI 480x800 IPS LCD Display Module NT35512SH 2.8V
3.97" Inch 480x800 TFT LCD Description
SF-TC397B-8275A-N TFT LCD module is a 3.97” inch diagonal size portrait mode 480x800 full color display. This module is integrated with NT35512 controller on module and it supports MIPI interface. SF-TC397B-8275A-N model is having module dimension of 57.14 x 96.85 x 1.95 mm and active area size of 51.84 x 86.4 mm. SF-TC397B-8275A-N the model has been widely used in embedded systems, automation, GPS, medical equipment, industrial device, security equipment which requires TFT display in high quality and colorful image.
| Product: | IPS TFT LCD 3.97" | Resolution: | 480x800 Dots |
| Driver IC: | NT35512SH Or Equivalent | Outline Dim.: | 57.14 X 96.85 X 1.95 mm |
| Touch Screen: | Without | Cover Glass Dimension: | Customizable |
| Viewing Direction: | All Viewing Angles (IPS) | Interface: | MIPI Interface |
| Connection: | Connector Type | Pin Number: | 24 Pins |
| Surface Luminance: | 420 Cd/m2(nits) | Backlight Type: | White LED |
| LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
Pin Definition
Pin1, MIPI_TCN, DSI-CLK- clock signals.
Pin2, MIPI_TCP, MIPI_TCP.
Pin3, GND, GROUND.
Pin4, MIPI_TDN0, DSI-D0- data signals.
Pin5, MIPI_TDP0, DSI-D0+ data signals
Pin6, GND , GROUND.
Pin7, MIPI_TDP1, DSI-D1+ data signals.
Pin8, MIPI_TDN1, DSI-D1- data signals.
Pin9, GND, GROUND.
Pin10, NC
Pin11, NC
Pin12, GND, GROUND.
Pin13, NC
Pin14, NC
Pin15, GND, GROUND.
Pin16, VDD18_PMU, Power Supply 1.8V-2.8V
Pin17, NC
Pin18, LRSTB, LCM reset input
Pin19, NC
Pin20, LPTE, Tearing effect output
Pin21, VDD28_PMU, Power Supply 2.8V.
Pin22, GND, GROUND
Pin23, VLED_P, LED Anode.
Pin24, VLED_N, LED Cathode

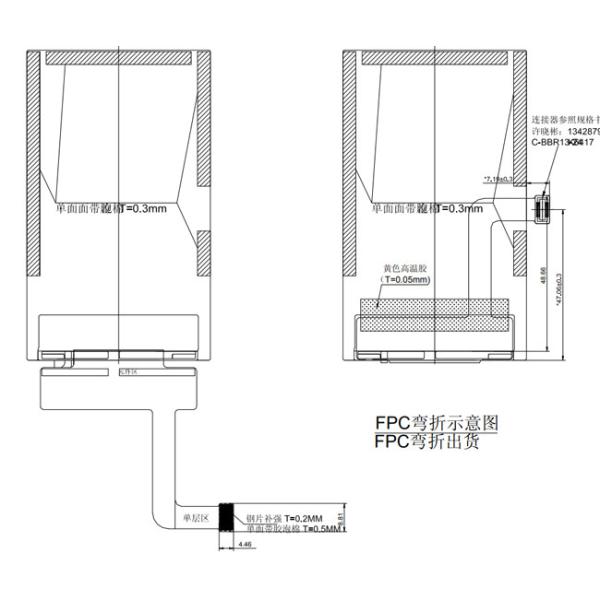

4" Inch 480x800 TFT LCD Drawing
4" Inch 480x800 TFT LCD Real Product Image
