1.3 inch TFT LCD 240x240 dots Product Introduction
SFTO130JY-7167AN is a full-color square TFT LCD display with a diagonal size of 1.3 inches and a resolution of 240x240. This module supports SPI interface, making it very convenient for users to program and use. The module size of SF-TO130B-8909A-N model is 21.16x29.22mm, and the active area size is 23. 4x23.4mm；
Driver IC ST7789V controller are integrated on the module, with a logic power supply voltage range of 3.0V to 3.6V. It can operate within a temperature range of -20 ℃ to+70 ℃ and Its storage temperature range is -30 ℃ to+80 ℃. SFTO130JY-7167AN's FPC can be customized, and can be equipped with newly designed resistive touch screen (RTP) or capacitive touch screen.
Feature
| Item | Contents |
| LCD Size | 1.3 inch(Diagonal) |
| Display Mode | Normally black |
| Resolution | 240(H)RGB x 240(V) |
| Dot pitch | 0.0975 (H) x 0.0975(V) mm |
| Active area | 23.4(H) x 23.4 (V) mm |
| Module size | 26.16(H) x 29.22(V) x 1.5Max(D) mm |
| Color arrangement | RGB Vertical stripe |
| Interface | 4 Line SPI |
| Drive IC | ST7789 |
| Luminance | 250 (TYP) cd/m2 |
| Viewing Direction | All View |
| Backlight | 2 White LED |
| Operating Temp. | -20℃~ + 70℃ |
| Storage Temp. | -30℃~+ 80℃ |
| Weight | TBD |
1.3 inch TFT LCD 240x240 dots Product Drawing
Pin Definition
| No. | Symbol | Description |
| 1 | GND | Ground |
| 2 | LEDK | Cathode of Backlight |
| 3 | LEDA | Anode of Backlight |
| 4 | VCC | Power supply for Analog(2.8V-3.3V) |
| 5 | GND | Ground |
| 6 | GND | Ground |
| 7 | D/C | Register select pin D/C=’ 1’ : Display data. D/C=’0’ : Command data. |
| 8 | CS | Chip select pin(“Low” enable) |
| 9 | SCL | Serial clock pin. |
| 10 | SDA | Serial data input |
| 11 | RESET | LCM Reset pin |
| 12 | GND | Ground |
Electrical Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit |
| Logic Supply Voltage | IOVCC | 1.65 | 1.8/2.8 | 3.3 | V |
| Analog Supply Voltage | VCC | 2.6 | 2.8 | 3.3 | -- |
| Input Current | Idd | -- | 20 | -- | mA |
| Luminance | | -- | 250 | -- | Cd/m2 |

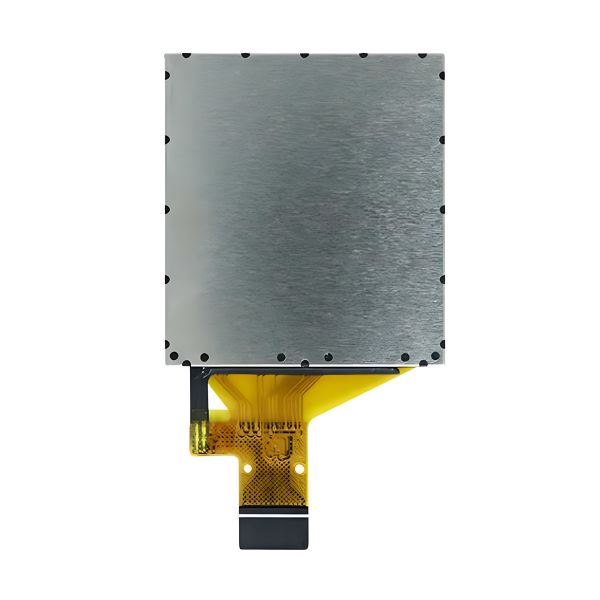

1.3 inch TFT LCD 240x240 dots Product Image
Factory Facilities and Certifications
Projected Capacitive (PCAP) Touch Screen
Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. The SAEF
technology projected capacitive touch screen is designed for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.
Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF
Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
Contact Us
We love to hear about your projects, If you have any questions, we can be reached at sales2@saef.com.cn
