Small LCD Screen 1.3" Inch 240x240 Square Type IPS TFT Free Viewing Angle Small Lcd Screen
1.3" inch 240x240 TFT LCD, IPS TFT Display 1.3 inch Description
SAEF TECHNOLOGY SF-TO130B-8909A-N is a diagonal size 1.3” inch square type TFT LCD Module with resolution 240x240 pixels.
Product Quick Details:
1. LCD Size: 1.3” inch TFT
2. Resolution: 240x240
3. Viewing Angle: All
4. Outline Dimension: 21.16x29.22x1.9 mm
5. LCD Driver IC: ST7789V
6. LCD Interface Type: SPI
7. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
8. Touch Panel: optional to customize resistive touch screen(RTP) or capacitive touch screen(CTP)
Product Features:
1. SF-TO130B-8909A-N is TFT LCD module is a 1.3” inch diagonal size, 240x240, full color TFT LCD display.
2. This module supports SPI Interface. SF-TO130B-8909A-N model is having module dimension of 21.16x29.22mm and Active area size of 23. 4x23.4mm;
3. SF-TO130B-8909A-N is integrated with ST7789V controller on module, and its logic supply voltage ranges from 3.0V to 3.6V.
4. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
5. SF-TO130B-8909A-N is square type LCD module, with 150-200 cd/m2 luminance. If you would like to adjust the luminance, please contact with us for more technical support.
6. SF-TO130B-8909A-N FPC can be customized, and is optional to newly design a resistive touch screen(RTP) or capacitive touch screen(CTP)
Quality assurance
1. For every piece, we have 3 times 100% test to ensure good quality.
2.The QA manager has been in the LCD industry for more than 14 years. The key manufacturing and QA operators have been in the LCD industry for more than 7-8 years. Our team are all very professional and experienced in the LCD filed to ensure quality for customers.
3. All the defects can be returned and replaced.
4. All products are ROHS compliant.
FAQ
1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. Then you can place us the order.
For designing or further discussion, it is better to contact us by email / phone for more clear and accurate LCD solution proposal for you. .
2. What kind of display we provide?
We have TFT color LCD display module, monochrome lcd module, OLED lcd module, lcd module with digital frame, Android Tablet, etc. We support both indoor and outdoor applications, industrial and commercial applications.
We also support standard solutions and customized design solutions.
We have off-shelf and design-in products to provide customer with one-stop solutions.
3. How about the warranty ?
We have 1 year warranty. All the defects can be returned and replaced.
4. What is your terms of delivery?
We accept EXW, FOB, FCA, etc. You can choose the one which is the most convenient or cost effective for you.
| Product: | 1.3" Inch TFT | Touch Screen: | Without Touch screen(optional) |
| Resolution: | 240x240 | Cover Glass Dimension: | Customizable |
| Viewing Direction: | Free Viewing Angle(80/80/80/80) | Interface: | SPI |
| Pin Number: | 13 Pins | Connection: | FPC connector type |
| Surface Luminance: | 200 Cd/m2(nits) | LED Lifetime: | 40,000 Hours |

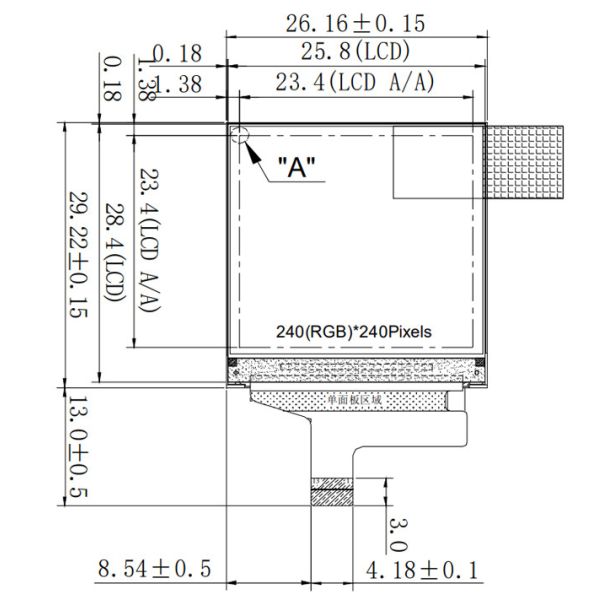

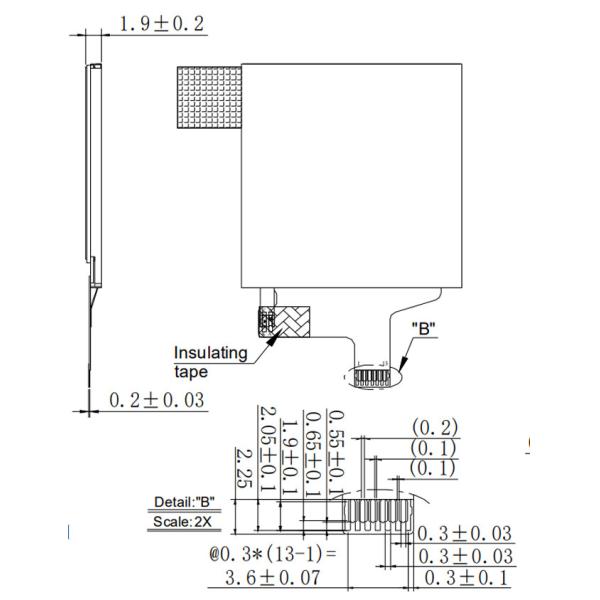

1.3" inch 240x240 TFT LCD, IPS TFT Display 1.3 inch Drawing

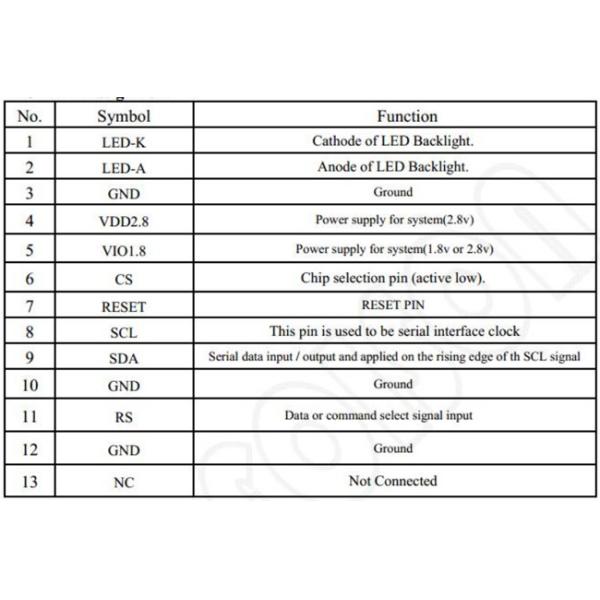

Pin Definition:
1.3" inch 240x240 TFT LCD, IPS TFT Display 1.3 inch Real Product Image
SIMILAR PRODUCTS PROPOSED FOR YOUR DESIGN
|
SIZE
| DETAILS | OUR P/N |
|
1.3 inch
| different FPC tail, MCU interface | SF-TO130B-8916A-N |
| | | |
