5 inch SPI interface TFT LCD, Automotive Grade 5 inch Display
SAEF TECHNOLOGY SFTO500HQ-7012A-N is a 5 inch full TFT-LCD display with 800x480 resolution (800 horizontal by 480 vertical pixels array). It can be used in embedded systems, automation, medical equipment, industrial device, security equipment which requires TFT display in high quality and colorful image. SFTO500HQ-7012A-N is a IPS-LCD type TFT with brightness 500 - 1000 cd/m2 (typical value). It can be operating at temperatures from -30℃ to +85℃.
| Item of general information | Contents |
| LCD Display Size (Diagonal) | 5 inch IPS |
| Module Structure | LCD Display + PCB |
| LCD Display Type | TFT/TRANSMISSIVE |
| LCD Display Mode | Normally Black |
| Recommended Viewing Direction | ALL VIEW o’clock |
| Module size (W×H×T) | 137.30×80.97×5.50 mm |
| Active area (W×H) | 108.00×64.80 mm |
| Number of pixels (Resolution) | 800RGB×480 pixel |
| Pixel pitch (W×H) | 0.135×0.135 mm |
| Module Interface Type | 3 wire SPI interface |
| Module Input voltage | 5V |
| Color Numbers | 16.7M |
| Backlight Type | White LED |

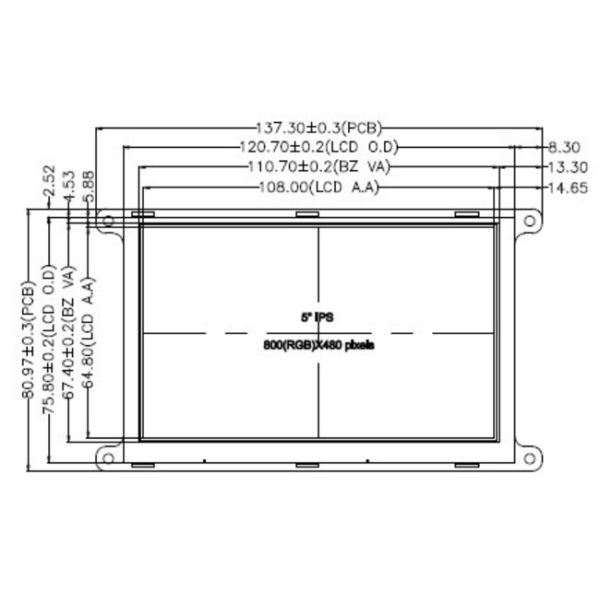

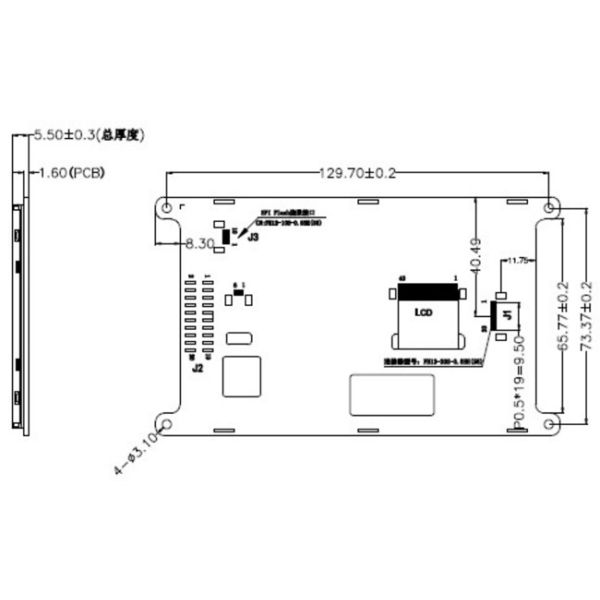

5 inch SPI interface TFT LCD, Automotive Grade 5 inch Display Drawing
5 inch SPI interface TFT LCD, Automotive Grade 5 inch Display Product Image
Pin definition:
J1&J2 Interface Description
Pin1~2, VCC5V / Power supply / Module Power supply (5V Typ.)
Pin3~4, GND / Power supply / Power ground
Pin5, LCD_CS / I / Chip Select pin for 3-wire serial I/F.
Pin6, NC / - / No connection
Pin7, LCD_SCLK / I / Clock of 3-wire serial I/F.
Pin8, LCD_INT / O / The interrupt output for host to indicate the status.
Pin9, LCD_RST / I / This is an active low Reset pin for LCD.
Pin10, LCD_SDA / I/O / Bi-direction data pin of 3-wire SPI I/F.
Pin11, CTP_INT(NC) / O / CTP External interrupt to the host
Pin12, CTP_SCL(NC) / I / CTP I2C clock input
Pin13, CTP_SDA(NC) / I/O / CTP I2C data input and output
Pin14, CTP_RST(NC) / I / CTP external reset signal, Low is active
Pin15, NC / - / No connection
Pin16, GND / Power supply / Power ground
Pin17, NC / - / No connection
Pin18, NC / - / No connection
Pin19, NC / - / No connection
Pin20, GND / Power supply / Power ground
J3 Interface Description (SPI Flash burning interface)
Pin1, SF_CLK / I / Serial Clock Input
Pin2, SF_DI / I / Data Input
Pin3, SF_DO / O / Data output
Pin4, SF_CS / I / Chip Select Input
Pin5, LCD_RST / I / LCD RESET signal. This pin must be pull low
Pin6, GND / Power supply / Power ground
Pin7, NC / - / No connection
Pin8, NC / - / No connection
Pin9~10, 3.3V / Power supply / Power supply for the SPI Flash (3.3V Typ.)
