0.42 Inch OLED Display Module 72x40, OEL Display Module 0.42 Inch

Name: 042 Inch OLED Display Module 72x40 OEL Display Module 042 Inch
Brand: SAEF
Price: 1 USD

Wholesale 0.42 Inch OLED Display Module 72x40, OEL Display Module 0.42 Inch from china suppliers

Brand Name : SAEF

Model Number : SFOS042XZ-7110AN

Certification : ISO9001 / ISO14000

Place of Origin : ShenZhen / China

MOQ : 3 pcs

Price : The price for bulk order varies depending on the lot order quantity or the annual quantity demand.

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 3000K pcs per month

Delivery Time : 3-5 weeks

Packaging Details : Standard Exportation Package

Product : 0.42 inch OLED display Module

Number of Pixels : 72x40 Graphics

Driver IC : SSD1315 or Equivalent

Display Mode : Passive Matrix

Display Color : Monochrome (white)

Drive Duty : 1/40 Duty

Panel Size : 12 x 11 x 1.25 (mm)

Active Area : 9.196 x 5.18 (mm)

Pixel Pitch : 0.128 x 0.13 (mm)

Pixel Size : 0.108 x 0.11 (mm)

Viewing Direction : All Viewing Angles

Interface : 4-wire SPI, I2C

Connection : Soldering/Hotbar (customizable）

Pin number : 16 pins ( Can be customized）

Life time : 50,000 hours @60cd/m2

Compliance : REACH & RoHS Compliant

Contact Now

0.42 Inch OLED Display Module 72x40, OEL Display Module 0.42 Inch Product Introduction

SFOS042XZ-7110AN OLED Display Module is a 72x40 resolution COG graphic display, diagonal size 0.42 inch. The OLED model is designed as industrial grade which is having the advantage of competitive price. The module is built-in with SSD1315 IC; it supports I2C and 4-wire SPI serial interface. The supply voltage for logic is 2.8V, supply voltage for display is 9V, Operating Current for VDD is 180μA, driving duty 1/40.

SFOS042XZ-7110AN OEL Display Module is suitable for wearable device, smart home applications and etc. This module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.

Product:	0.42 Inch OLED Display Module
Number Of Pixels:	72x40 Graphics
Driver IC:	SSD1315 Or Equivalent
Display Mode:	Passive Matrix
Display Color:	Monochrome (white)
Drive Duty:	1/40 Duty
Panel Size:	12 X 11 X 1.25 (mm)
Active Area:	9.196 X 5.18 (mm)
Pixel Pitch:	0.128 X 0.13 (mm)
Pixel Size:	0.108 X 0.11 (mm)
Viewing Direction:	All Viewing Angles
Interface:	4-wire SPI, I2C
Connection:	Soldering/Hotbar (customizable)
Pin Number:	16 Pins ( Can Be Customized)
Life Time:	50,000 Hours @60cd/m2
Compliance:	REACH & RoHS Compliant

SAEF Technology is a professional OLED Module Supplier. We provide a wide range of standard passive matrix OLED (PMOLED) / OLED dot matrix display and custom design Character OLED modules, Graphic OLED displays and OLED display panels. Mechanical structure includes Chip on Board (COB), Chip on Glass (COG), and TAB (Tape Automated Bonded) types. Customers can upgrade applications from STN LCD to OLED displays easily. SAEF OLED modules are featured with all the important advantages:

Faster response time “At +25 ℃ 10 μsec.”
Unlimited viewing angle “Up to 175 degree”
Thin – No need of backlight, self emitting
High Brightness
High contrast ratio “Up to 10,000:1”
Wide Operation Temperature “-40 ℃ ~ 80 ℃”
Lower power consumption

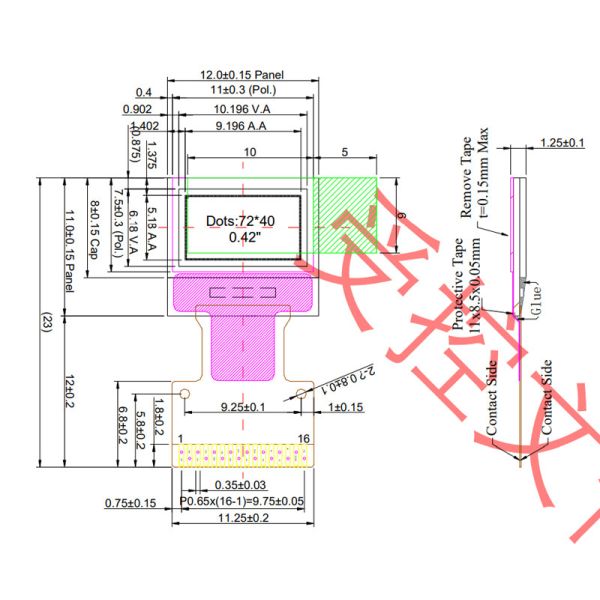

0.42 Inch OLED Display Module 72x40, OEL Display Module 0.42 Inch Product Drawing

0.42 Inch OLED Display Module 72x40, OEL Display Module 0.42 Inch

0.42 Inch OLED Display Module 72x40, OEL Display Module 0.42 Inch Product Image

0.42 Inch OLED Display Module 72x40, OEL Display Module 0.42 Inch
